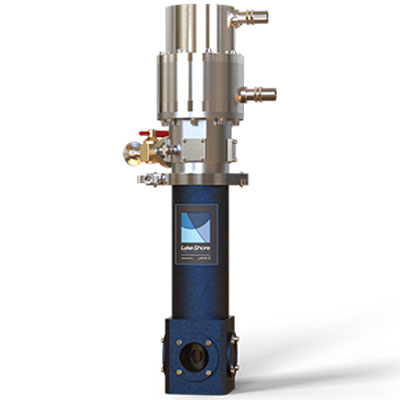

Cryogen-free 10 K Closed-Cycle Refrigerator Systems
Lake Shore Cryotronics environment by Janis
Lake Shore 10 K CCR Series cryostats provide cryogen-free cooling for optical and electrical measurements from ~7 K to 11 K to 325 K. They are equipped with interchangeable optics and include provisions for a wide variety of electrical connectors. A sturdy mounting stand provides convenient mounting to an optical table in any orientation. 500 K and 800 K options are available.
10 K Cryocooler Features
- 7 K to 325 K (options for 500 K and 800 K)
- Low-vibration 40 nm option
- A turnkey alternative to liquid helium
Specifications
| Cooling Type | Minimum Temperature | Maximum Temperature | Vibration | Cryocooler | Cryocooler Power Options |
|---|---|---|---|---|---|
| Cryogen-free | 7 K to 11 K | 325 K; options for 500 K and 800 K | Low-vibration 40 nm option | Gifford-McMahon | 2 W at 20 K, 3 W at 10 K, and 7 W at 20 K |
